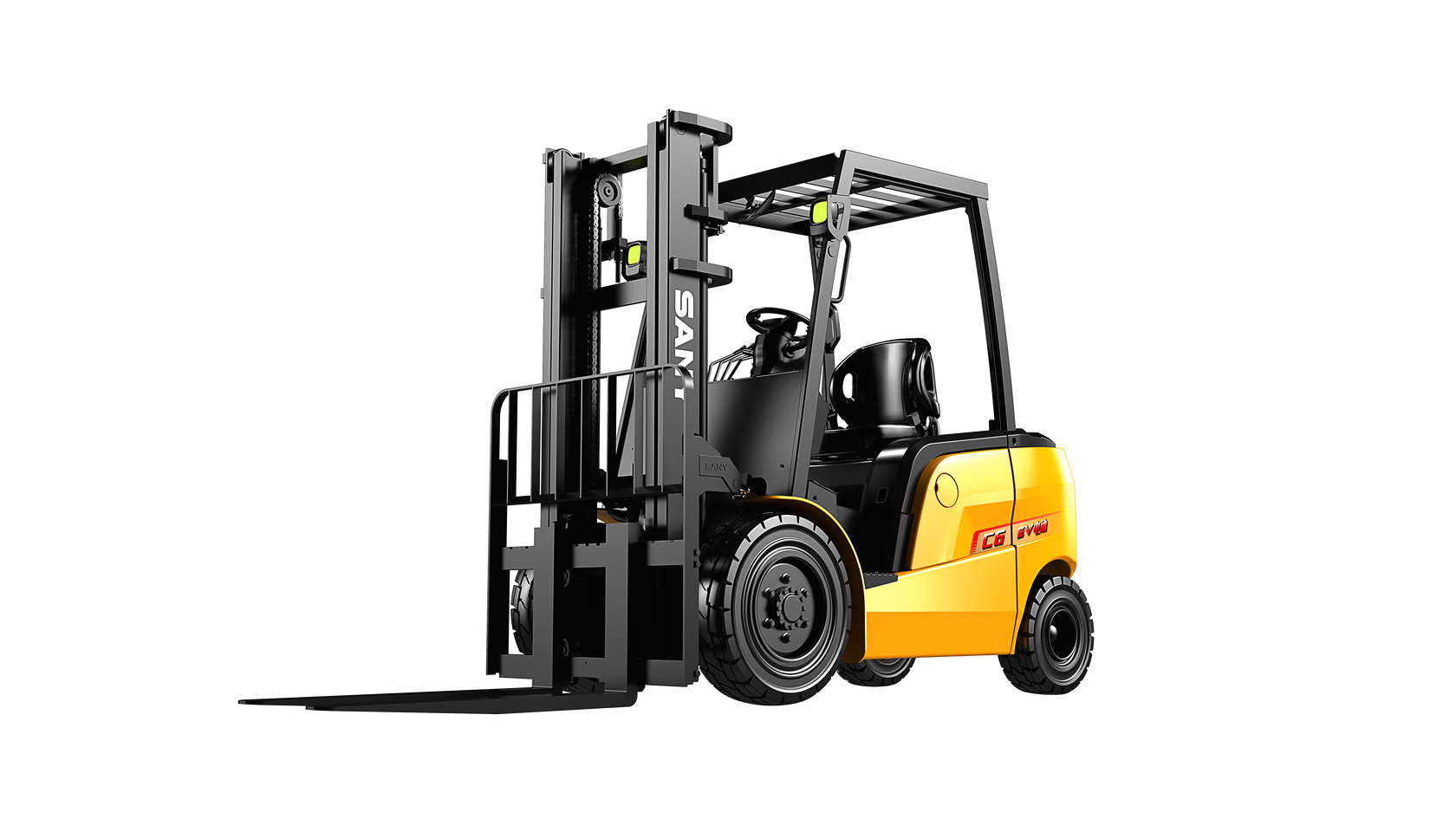

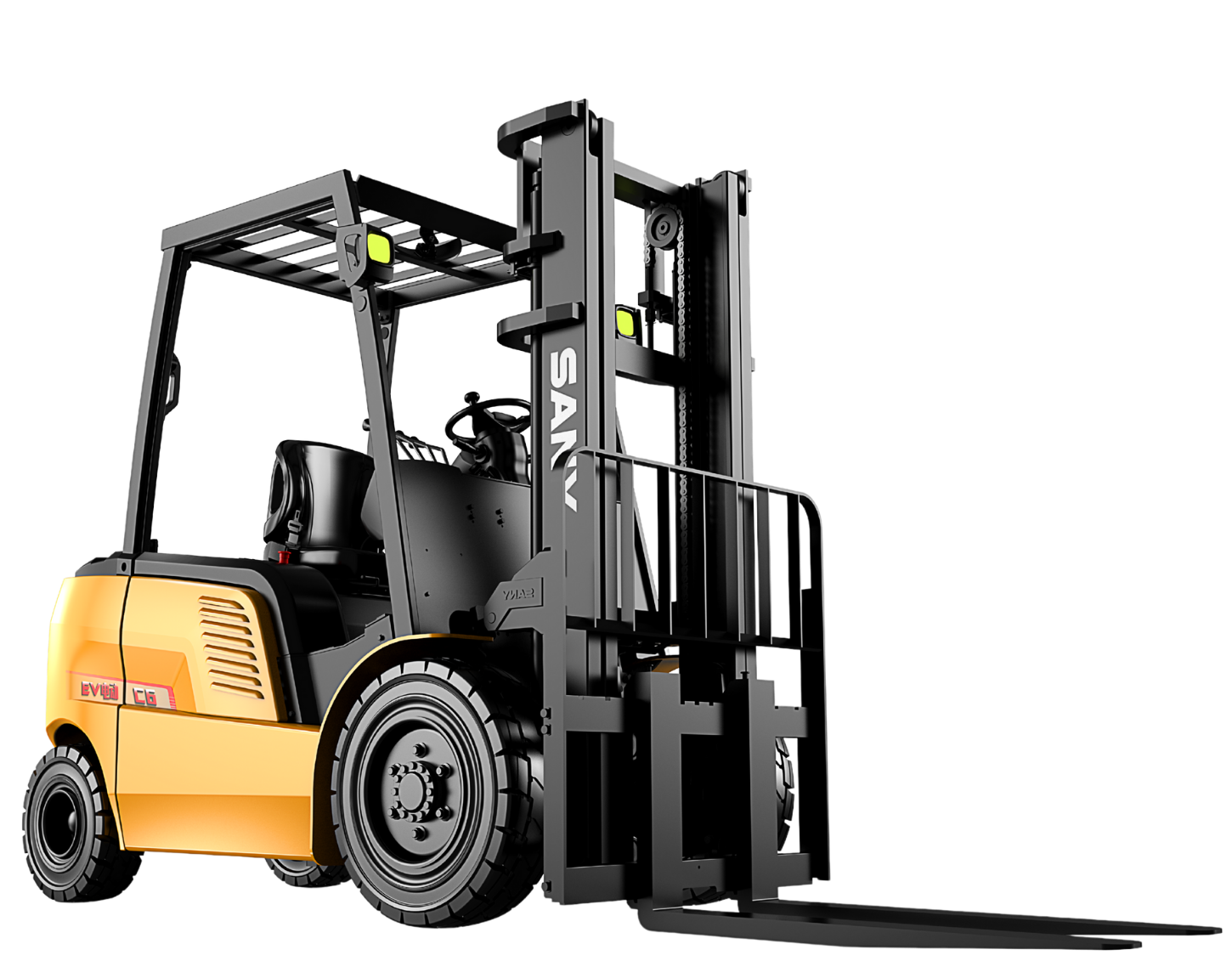

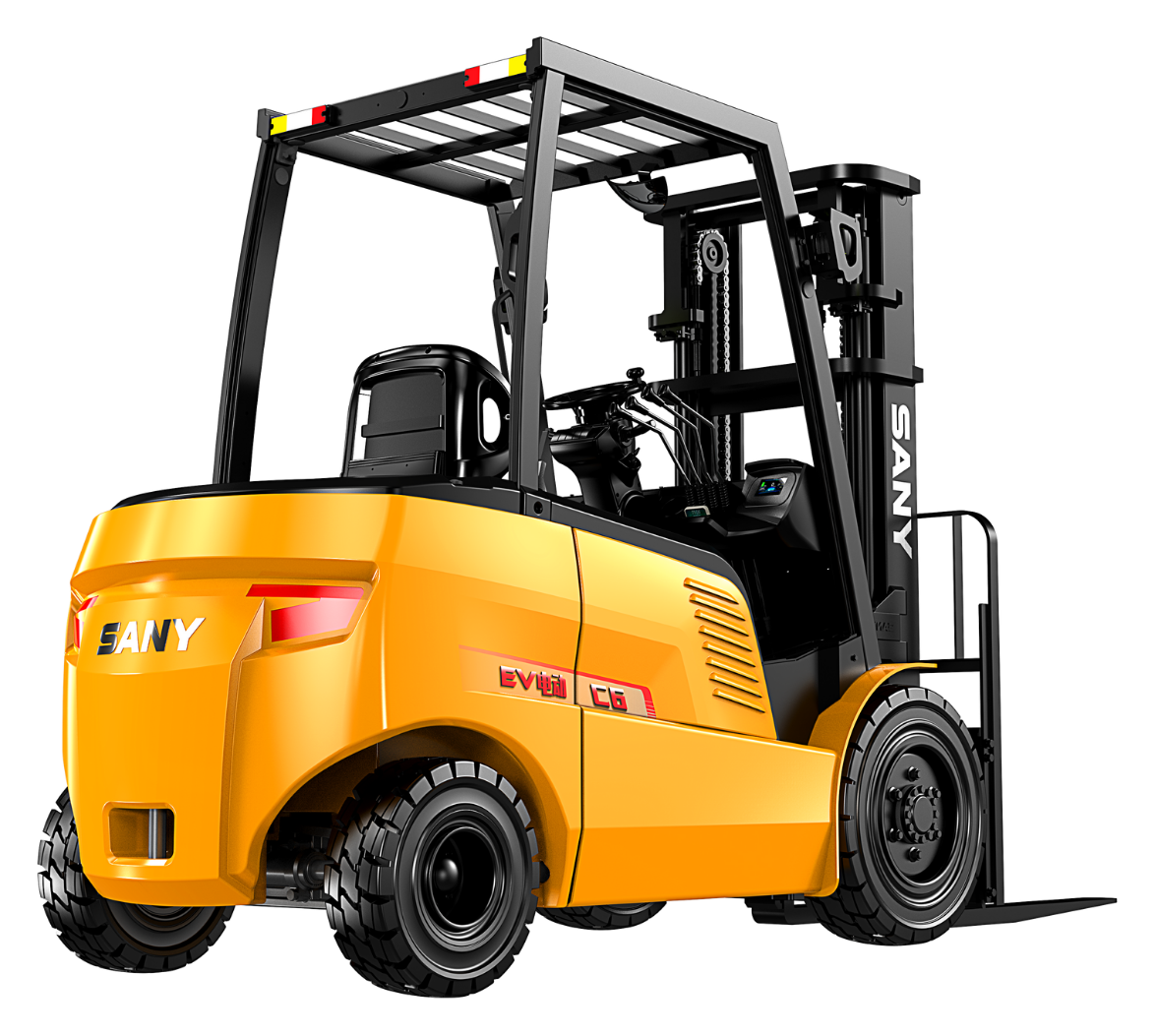

Compare SANY C6 counterbalance electric forklifts for warehouse pallet handling and loading. Select a model by the weight and dimensions of your load, required lift height and operating space.
The C6 series covers five models: SCP25, SCP30, SCP35, SCP40 and SCP50, each designed for a different lifting capacity. Mast, fork and other accessories can be selected to suit your application.
| Model | Rated capacity(lbs.) | Load center (inch) |
Axle center to fork face(inch) | Wheelbase (inch) |
Truck weight (lbs.) | Full Axle Load (lbs.) | Unladen Axle load (lbs.) |
| SCP25C6 | 5000 | 20 | 18 | 65 | 8488 | 12346/1653 | 3858/4189 |
| SCP30C6 | 6000 | 20 | 20 | 69 | 10180 | 15012/1786 | 4718/5467 |
| SCP35C6 | 7000 | 20 | 20 | 69 | 10714 | 16377/2050 | 4630/6083 |
| SCP40C6 | 8000 | 20 | 20 | 73 | 12905 | 19123/2601 | 5490/7439 |
| SCP50C6 | 10000 | 20 | 22 | 79 | 16094 | 24030/3307 | 7055/9039 |
Available model options are SCP25C6 (5,000 lb), SCP30C6 (6,000 lb), SCP35C6 (7,000 lb), SCP40C6 (8,000 lb) and SCP50C6 (10,000 lb). These are listed nominal capacities; actual capacity depends on lift height, load centre, mast and attachments. Confirm the supplied load plate and configuration before ordering.
Send GETSUP your heaviest load, pallet dimensions, racking height, doorway clearance, aisle width and available charger power. Request availability, Mississauga pickup or a Canada-wide freight quote.
Read the forklift and reach truck buying guide or compare all forklift models.
| Mast/fork carriage tilt angle (°) | 6/12 |
| Mast height (mm) | 2160 |
| Fork free lifting Height (mm) | 150 |
| Mast Lifting height (mm) | 3000 |
| Max Mast lifting height (mm) | 4100 |
| Overall height (mm) | 2190 |
| Overall lengtd (mm) | 2410 |
| Overall widtd (mm) | 1230 |
| Fork dimensions (mm) | 40/122/1070 |
| Forks Spacing (mm) | 250-1100 |
| minimum ground clearance (mm) | 130 |
| Space between stacking aisle(1mx 1.2m) (mm) | 3740 |
| Space between stacking aisle(0.8mx 1.2m) (mm) | 3940 |
| Minimum turning radius (mm) | 2090 |
