Description

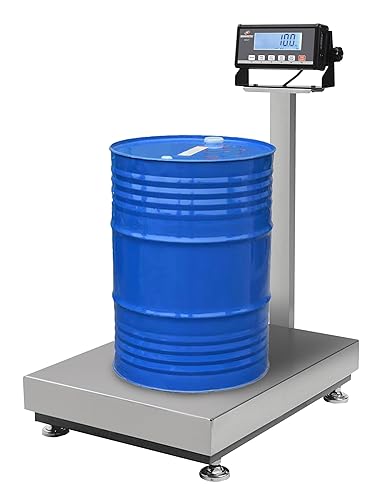

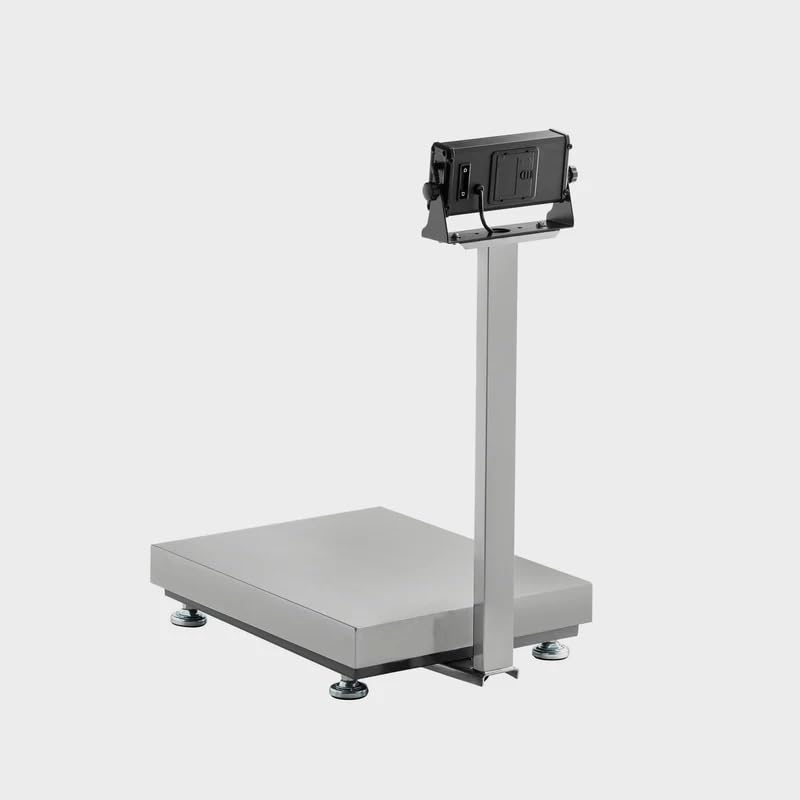

xThe MEASURETEK EHP-B-M is an NTEP- and Measurement Canada-approved platform scale for commercial and industrial weighing. A removable stainless-steel platform, double-layer base frame and column-mounted indicator support durable daily operation.
Key Features
- Supplied configuration: 100 kg x 0.02 kg / 250 lb x 0.05 lb
- Platform size: 400 x 500 mm / 15.7 x 19.68 in
- RS232 and USB communication
- AC adapter or four AA batteries
- Weighing, counting, check-weighing, percentage, accumulation and hold functions

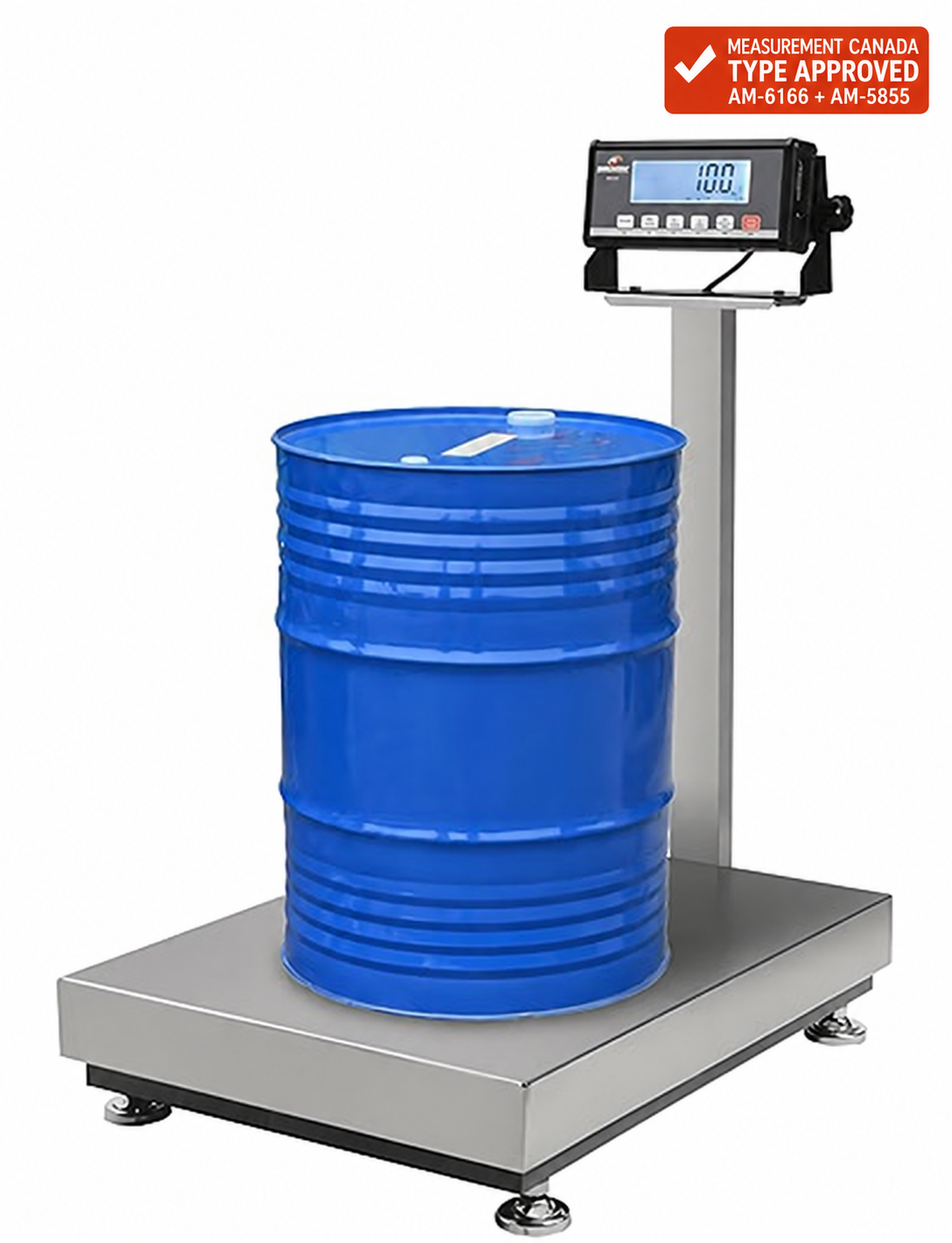

Measurement Canada Approval

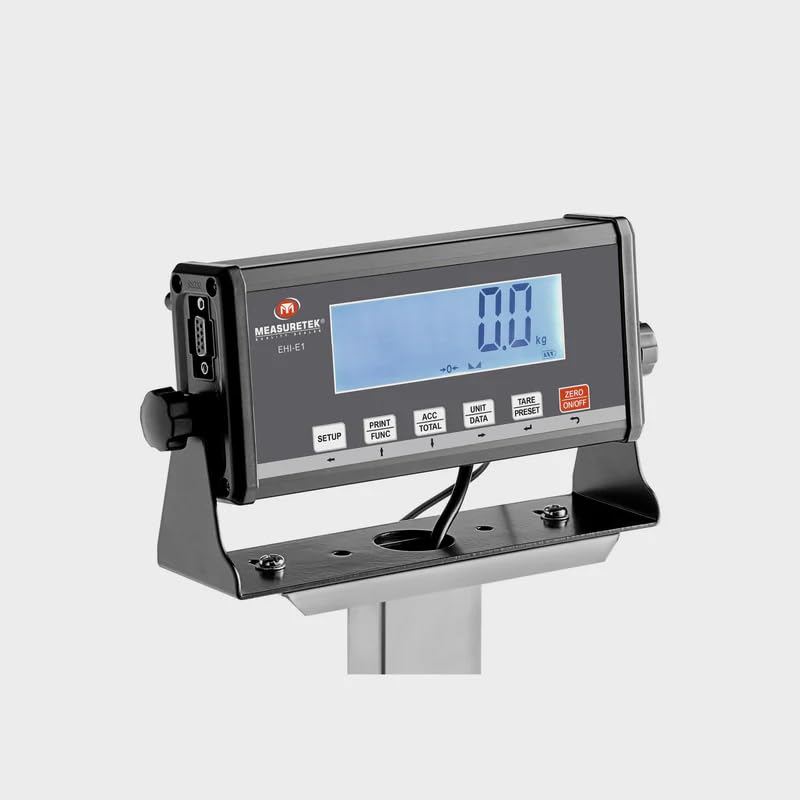

The EHP weighing platform is type approved under AM-6166 and the EHI-E1 indicator under AM-5855. Type approval confirms the approved configuration. Equipment used in trade may also require inspection, sealing and correct setup before use.
Recommended Applications
Commercial weighing, shipping, receiving, inventory counting and operations requiring an approved bench or platform scale.
Available in Canada
Available from GETSUP INC in Mississauga, Ontario, with local pickup in the GTA and Canada-wide shipping. Contact us for inventory, commercial pricing and inspection requirements.
Frequently Asked Questions
Which Measurement Canada approvals apply to the EHP-B-M?
The approved configuration uses the EHP platform under AM-6166 and the EHI-E1 indicator under AM-5855.
Compare scales for your application
Use the industrial and commercial scale buying guide to compare capacity, readability, platform size and connectivity. For sales by weight, review the Canadian legal-for-trade scale guide and confirm the exact approved configuration.
Specifications
x| Brand | MEASURETEK |
|---|---|
| Model | EHP-B-M |
| Listed capacity by weighing unit | 100 kg / 250 lb |
| Division / readability | 0.02 kg / 0.05 lb |
Capacity and division are listed for the supplied model. Values in different weighing modes are manufacturer-listed ratings, not exact unit conversions. Readability is the displayed increment and is not an accuracy tolerance. Confirm platform dimensions, power configuration and included accessories for the supplied unit before ordering.
Features
x| Model | EHP-B-M |
|---|---|
| Capacity / Division | 100 kg × 0.02 kg / 250 lb × 0.05 lb (supplied configuration) |

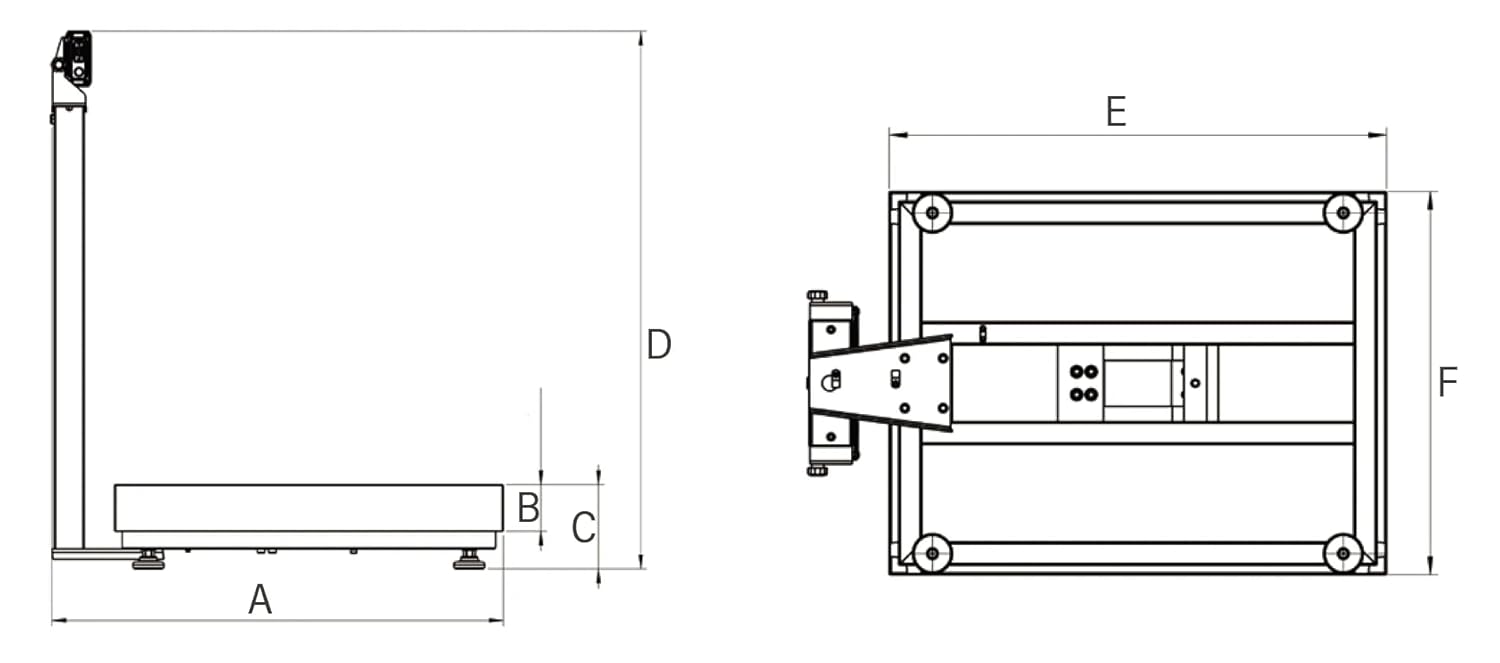

| Platform Size | 400 x 500 mm / 15.7" × 19.68" |
| Packing Information |
705 x 625 × 210 mm / 1 pc / ctn G.W.: 15.1 kg N.W.: 13 kg |
| Units of Measure | kg, lb, lb:oz, g, oz, pcs, % |
| Display | 6 ½ digits 1" (25 mm) high, 7 segments LCD display with backlight |
| Power | 9V 600mA adapter or 4xAA batteries |
| Communication | RS232, USB |
| Operation Temp | -10°C to 40°C (14°F to 104°F) |
| Options | RS232 cable, USB cable |
