Description

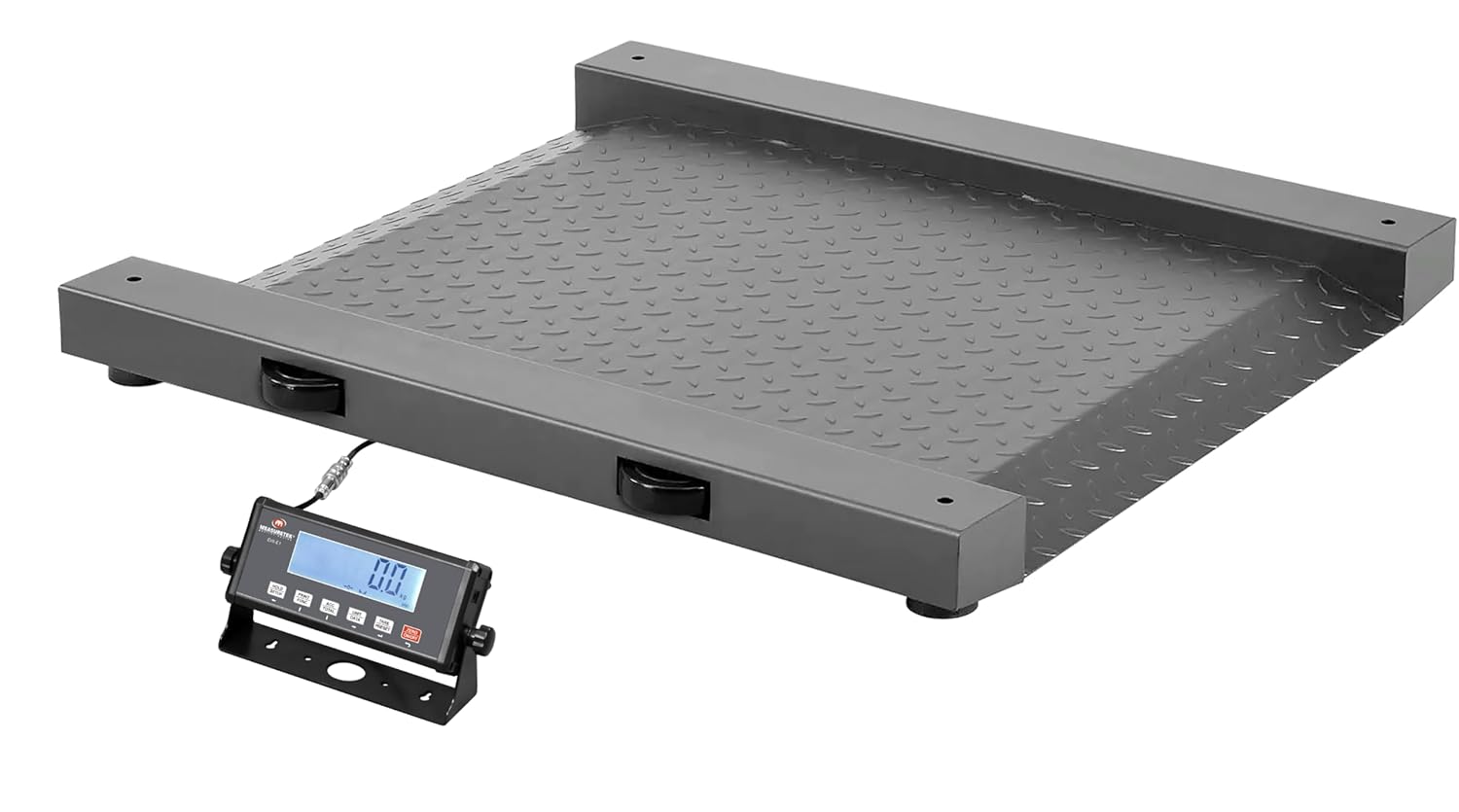

xThe MEASURETEK EH-MI105 is a portable 1,000 lb / 500 kg low-profile drum and floor scale designed for weighing barrels, drums and wheeled loads. Integrated ramps, handles and wheels make it easier to load and relocate within a warehouse or production facility.
Key Features
- Capacity and division: 1,000 lb x 0.5 lb / 500 kg x 0.2 kg

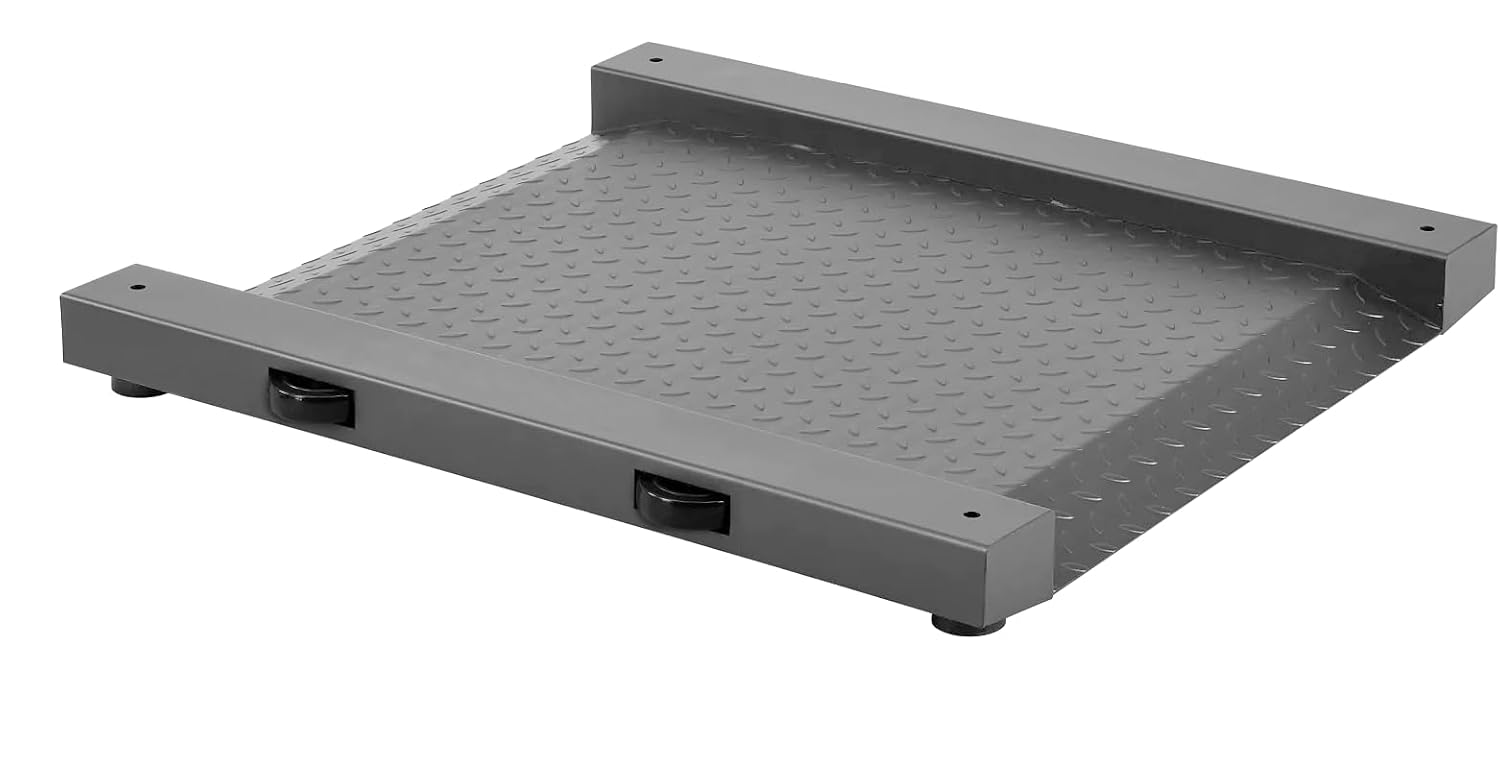

- Low-profile checkered-steel deck with integrated ramps

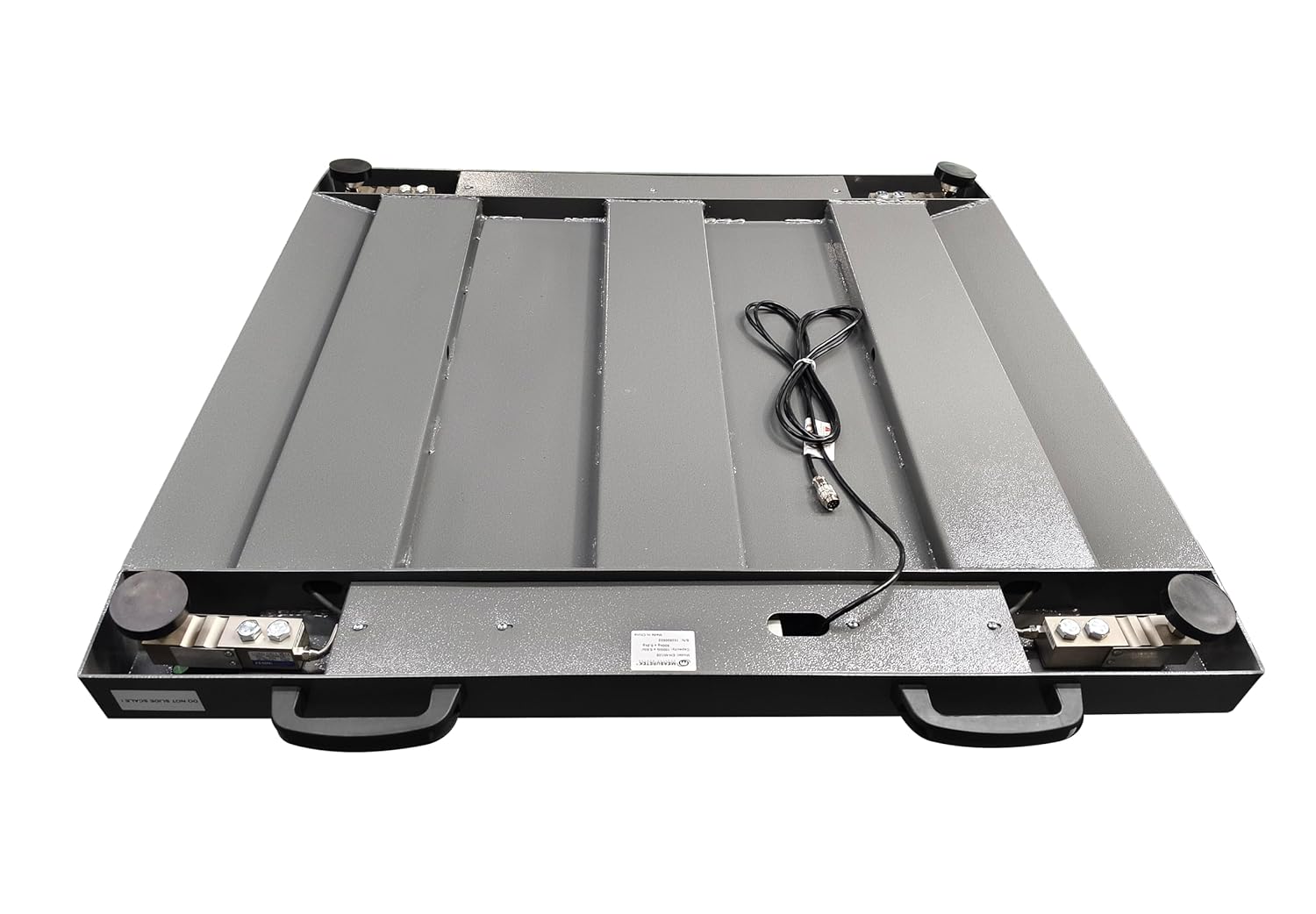

- Four-point shear-beam load-cell system
- Alloy-steel leveling feet
- Aluminum indicator housing with wall or tabletop bracket

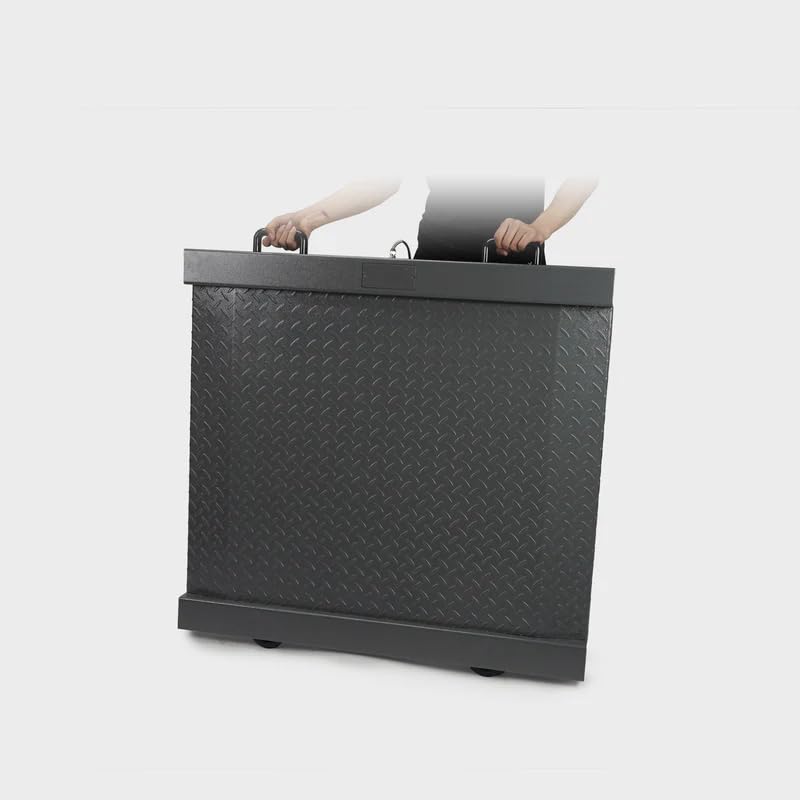

- Two handles and integrated wheels for relocation
- Counting, check-weighing, percentage, accumulation and GEO CAL functions
Recommended Applications
Drum and barrel weighing, chemical and manufacturing operations, warehouses, receiving areas and general industrial floor weighing.
Available in Canada
Available from GETSUP INC in Mississauga, Ontario, with local pickup in the GTA and Canada-wide shipping. Contact us for current stock and commercial pricing.
Frequently Asked Questions
Is the EH-MI105 easy to move?
Yes. It includes two handles and integrated wheels so the scale can be repositioned between work areas when unloaded.
Does the scale include loading ramps?
Yes. The low-profile platform has integrated ramps to simplify loading drums and wheeled equipment.
Compare scales for your application
Use the industrial and commercial scale buying guide to compare capacity, readability, platform size and connectivity. For sales by weight, review the Canadian legal-for-trade scale guide and confirm the exact approved configuration.
Specifications
x| Brand | MEASURETEK |
|---|---|
| Model | EH-MI105 |
| Listed capacity by weighing unit | 500 kg / 1,000 lb |
| Division / readability | 0.2 kg / 0.5 lb |
Capacity and division are listed for the supplied model. Values in different weighing modes are manufacturer-listed ratings, not exact unit conversions. Readability is the displayed increment and is not an accuracy tolerance. Confirm platform dimensions, power configuration and included accessories for the supplied unit before ordering.
Features
x| Model | EH-MI105 |
|---|---|
| Capacity / Division | 500 kg × 0.2 kg / 1000 lb × 0.5 lb |
| Units of Measure | kg, lb, lb:oz, g, oz, pcs, % |
| Display | 6 ½ digits 1" (25 mm) high, 7 segments LCD display with white backlight |
| Power | 9V 600mA adapter or 4 x AA batteries |
| Communication | RS232, USB |
| Operation Temp | -10°C to 40°C (14°F to 104°F) |

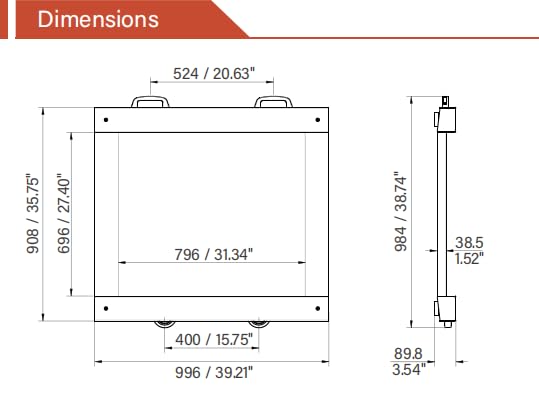

| Platform Size | 996 × 996 × 90 mm / 39.21" × 39.21" × 3.54" |
| Packing Information | 1110 × 1140 × 170 mm / 1 pc / ctn |
| Included Accessories | RS232 cable, USB cable, Indicator floor stand |
