Description

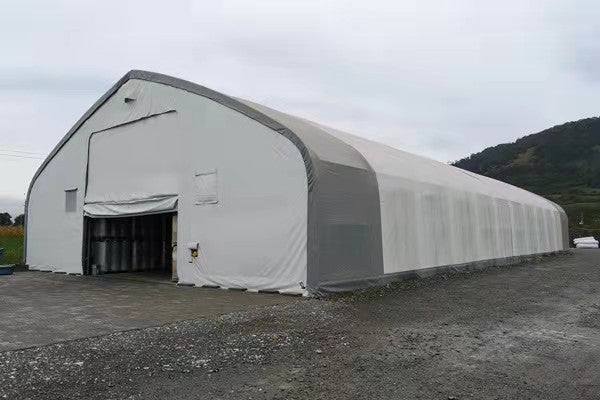

xThis 50 ft wide x 100 ft long x 23 ft high double-truss peak storage shelter provides 5,000 sq ft of covered space for machinery, vehicles and industrial materials.
Specifications
- Dimensions: 50 ft W x 100 ft L x 23 ft H (15.25 x 30.5 x 7.015 m)
- Double-truss galvanized steel frame
- Arch spacing: 3.05 m (10 ft)
- Side wall height: 3.5 m (approximately 11.5 ft)
- Main arch tube: 60 x 1.8 mm
- Purlin: 60 x 1.5 mm
- Winch door: 18 ft W x 16 ft H (5.49 x 4.89 m)
- Supplier quotation documents a 610g/m² PVC configuration; storefront cover options remain selectable
Planning and Installation
The two supplied PDFs do not state a snow or wind load for this standard 50 x 100 model, so the former 1.8/0.6 kN/m² claims have been removed. Verify local requirements before installation.
Available from GETSUP Inc. in Mississauga, Ontario. Contact us for availability, freight and product documentation.
Specifications
x| Supplier Model | 50-100-23DP |
|---|---|
| Product Size | 50 ft W x 100 ft L x 23 ft H / 15.25 x 30.5 x 7.015 m |
| Structure | Double-truss galvanized steel tube |
| Arch Spacing | 3.05 m / 10 ft |
| Main Arch Tube | 60 x 1.8 mm |
| Purlin | 60 x 1.5 mm |
| Door Size | 18 ft W x 16 ft H / 5.49 x 4.89 m |
| Side Wall Height | 3.5 m / approximately 11.5 ft |
| Quoted Cover | 610g/m² PVC; other storefront options require separate confirmation |
| Snow/Wind Load | Not stated for model 50-100-23DP in the supplied PDFs |
Shipping
x|
Material |
Package No. |
Package Size |
Package Weight |
|
610gPVC |
A |
3.15m*1.1m*1.08m/124.02"*43.31"*42.52" |
1450kg/3190lbs |
|
B |
3.15m*1.1m*1.08m/124.02"*43.31"*42.52" |
1020kg/2244lbs |
|
|
C |
3.15m*1.1m*1.08m/124.02"*43.31"*42.52" |
1650kg/3630lbs |
|
|
D |
2.5m*1.1m*1.08m/98.43"*43.31"*42.52" |
1110kg/2442lbs |
|
|
750gPVC |
A |
2.53m*1.12m*1.2m/99.61"*44.09"*47.24" |
1560kg/3432lbs |
|
B |
3.15m*1.12m*1.2m/124.02"*44.09"*47.24" |
1020kg/2244lbs |
|
|
C |
3.15m*1.12m*1.2m/124.02"*44.09"*47.24" |
1650kg/3630lbs |
|
|
D |
3.15m*1.12m*1.2m/124.02"*44.09"*47.24" |
1110kg/2442lbs |
