Description

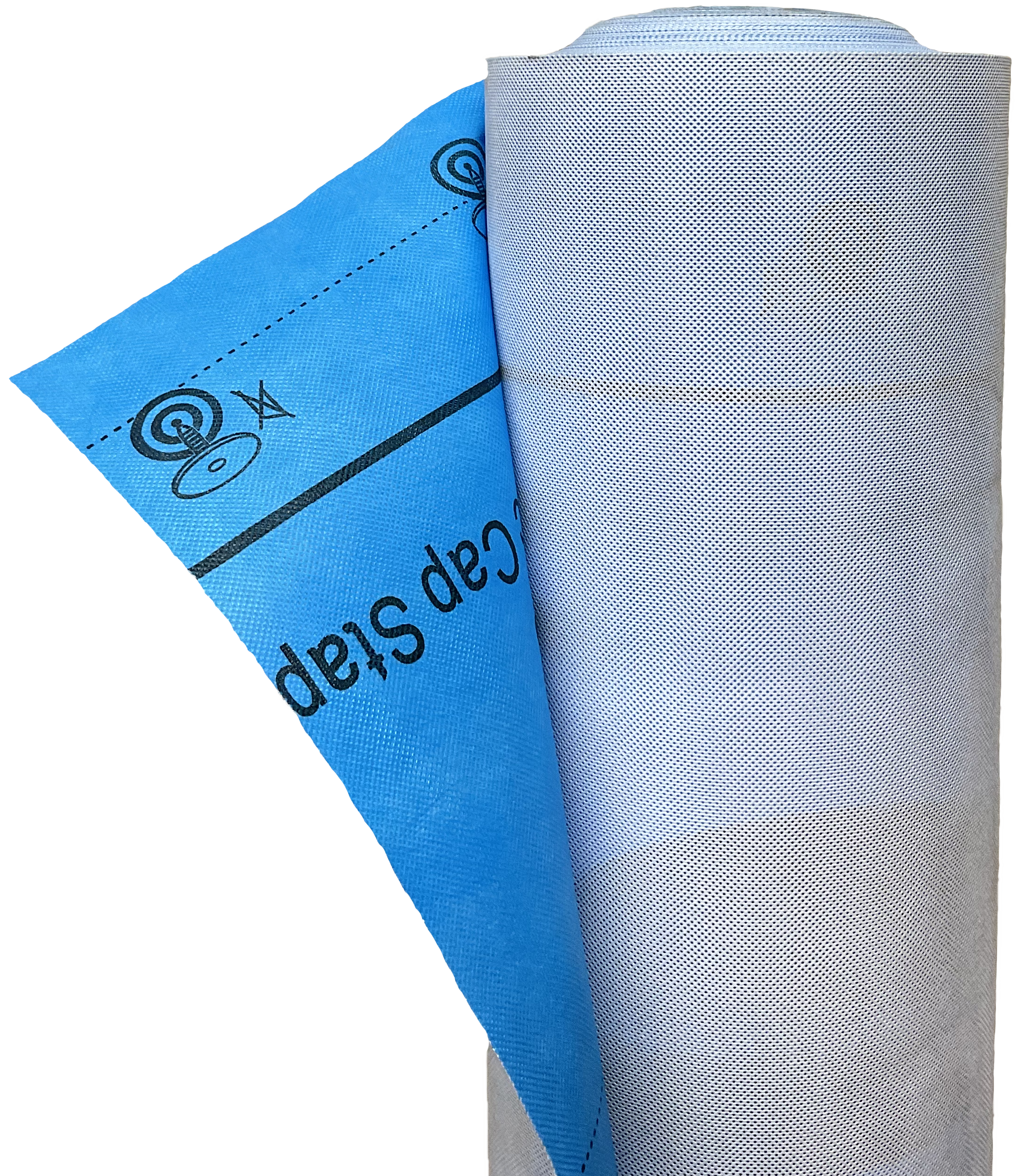

xECO Blue roofing underlayment comes in a 4 x 250 ft roll with 1,000 sq. ft. gross coverage for use beneath compatible roof coverings.
Specifications and options
| Roll width | 4 ft / 1.22 m |
|---|---|
| Roll length | 250 ft / 76.2 m |
| Gross coverage | 1,000 sq. ft. / 92.9 sq. m |
| Listed roll weight | 26.5 lb / 12 kg |
Choosing this product
Allow for laps and waste when ordering. Confirm roof-cover compatibility, fastening and exposure limits with the current product instructions. Request the technical data sheet if vapour permeability is important to your assembly.
Frequently asked question
Does one roll cover 1,000 sq. ft. after installation?
1,000 sq. ft. is the gross roll area. Effective coverage is lower after the required side and end laps, cuts and waste.
Contact GETSUP in Mississauga, Ontario for current stock, order quantities, pickup and delivery. Compare roofing materials and accessories.
Specifications
x| Product Specification | |
|---|---|
| Length Per Roll | 250 ft (76.2 m) |
| Width Per Roll | 4 ft (1.22 m) |
| Weight Per Roll | 26.5 lbs (12 kg) |
| Roll Size | 1,000 ft² (92.9 m²) |
| Rolls Per Pallet (Pallet Weight) | 25 rolls (662.5 lbs / 300 kg) |
| Test & ASTM Standard | |
| Permeability | 0.5 Perm |
| Water Transmission (D4869) | Pass |
| Tear Strength (D4533) | MD 45 lbs (20.42 kg), CD 51 lbs (23.13 kg) |
| Tensile Strength (D751) | MD 90 lbs (40.82 kg), CD 85 lbs (38.56 kg) |
| Burst Strength (D751) | 113 psi |
| Elongation (D751) | MD 20%, CD 20% |
| Weight per Square (D5261) | 2.65 lbs (1.2 kg) |
| Nominal Thickness (D1777) | 21 mils (0.525 mm) |
| Temperature Range | -40°F to 240°F / -40°C to 115°C |
