Description

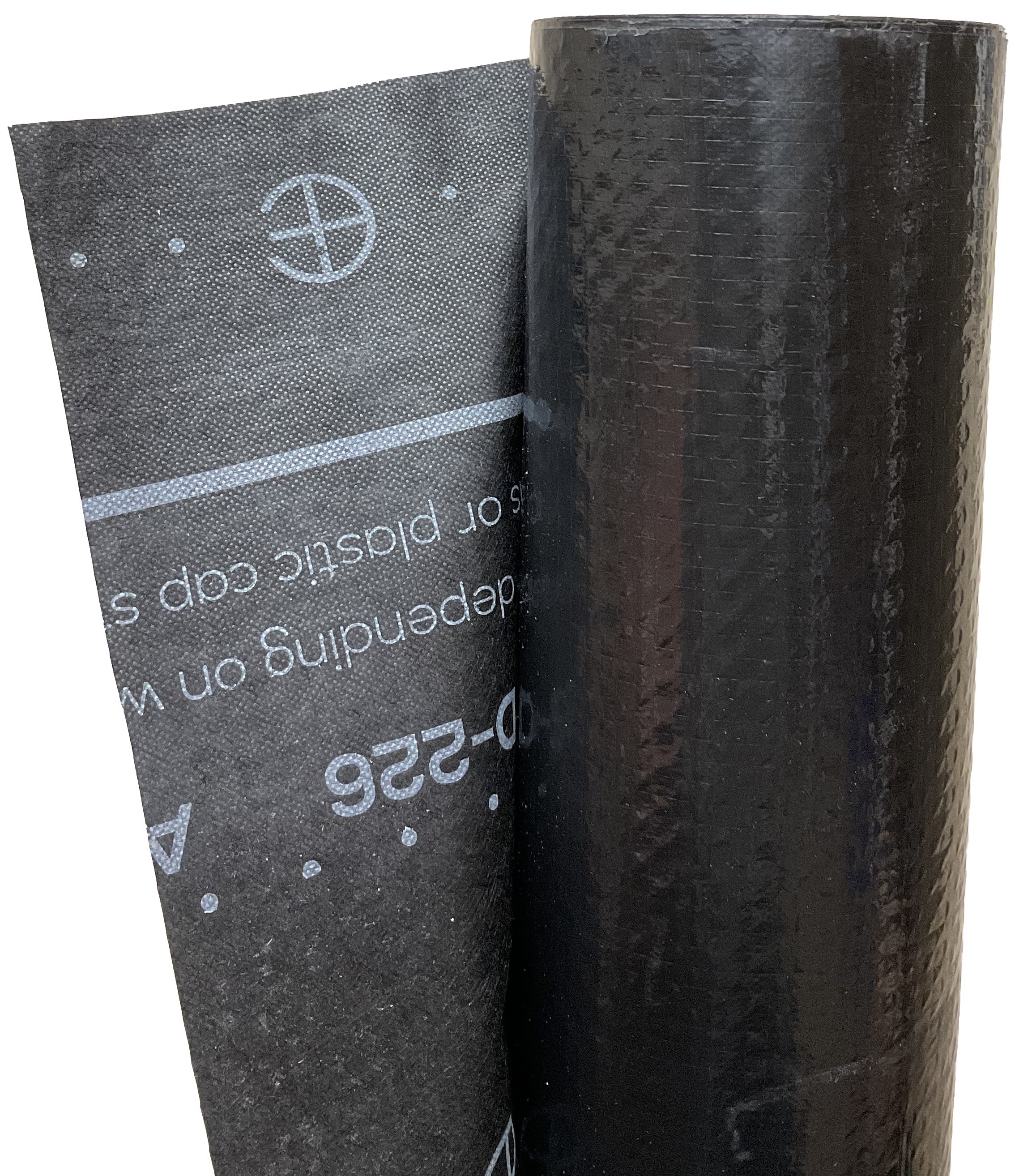

xECO Black synthetic roofing underlayment is a lightweight roof-deck layer designed for easier handling and dependable coverage during roofing installation.
Key Features
- 4 ft x 250 ft roll
- 1,000 sq ft coverage per roll
- Approximate roll weight: 23.5 lb
- Textured walking surface
- Published temperature range: -40°C to 115°C
- 72 rolls per pallet
Recommended Applications
- Asphalt shingle roofing
- New construction
- Roof replacement projects
Ordering Information
Install according to local code, project requirements and the finished-roofing manufacturer instructions. Use appropriate fasteners, overlaps and flashing details.
Available from GETSUP Inc. in Mississauga, Ontario. Contact us for stock, pickup and delivery options.
Specifications
x| Product Specification | |
|---|---|
| Length Per Roll | 250 ft (76.2 m) |
| Width Per Roll | 4 ft (1.22 m) |
| Weight Per Roll | 23.5 lbs (10.6 kg) |
| Roll Size | 1,000 ft² (92.9 m²) |
| Rolls Per Pallet (Pallet Weight) | 72 (1,692 lbs / 763.2 kg) |
| Test & ASTM Standard | |
| Permeability | 0.5 Perm |
| Water Transmission (D4869) | Pass |
| Burst Strength (D751) | 158 psi (1089 kPa) |
| Elongation (D751) | MD 20% / CD 20% |
| Weight per Square (D5261) | 2.35 lbs (1.06 kg) |
| Nominal Thickness (D1777) | 7 mils (0.18 mm) |
| Temperature Range | -40°F to 240°F / -40°C to 115°C |
| Tear Strength (D4533) | MD 26 lbs (12 kg), CD 24 lbs (11 kg) |
| Tensile Strength (D751) | MD 88 lbs (40 kg), CD 70 lbs (32 kg) |
| Package Information | |
| Pallet Size | 72 rolls |
