Description

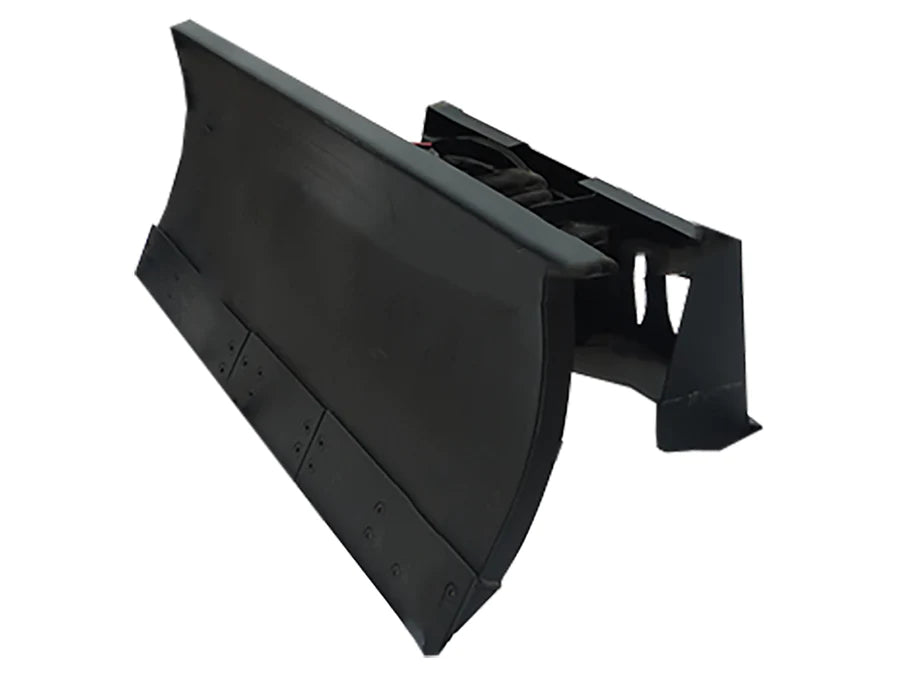

xThe Greatbear hydraulic snow plow is the perfect tool for heavy snowfall. It features a heavy-duty blade that can move large amounts of snow and ice away quickly and efficiently. It is designed with a hydraulic system that allows for smooth operation and efficient snow removal. The blade is made of high-grade steel that is strong and durable, ensuring that it will last for many years. The Greatbear hydraulic snow plow is easy to operate and requires minimal maintenance. With its powerful engine and robust design, it is sure to provide you with years of reliable service.
Installation Guide:
- Step 1: Install the shock-absorbing block (rubber pad) in the box in reverse, and install the left and right sides in reverse. (Fig. 1 → Fig. 2)
- Step 2: As shown in the figure, a leg needs to be changed in direction. (Figure 3, Figure, 4)
- Note: The user needs to change the direction of the outriggers for the first time. （Fig.3 → Fig.4）The purpose is to hang it on the loader, but after hanging up, the outriggers will fall to the ground, which will hinder the work, and you need to do the change back (Fig.4 → Fig.3). After the user has finished using it, he needs to change it (Fig.3 → Fig.4) for the next use.
Specifications
x| Product Specification | |
|---|---|
| Product Dimensions | 2200 mm x 806 mm x 752 mm (7.22’ x 2.64’ x 2.47’) |
| Product Weight | 300 kg (660 lbs) |
| Product Material | Q345 Steel |
| Surface Treatment | Plastic Powder Coating |
| Operating Pressure | 20 MPa |
| Operating Frequency | 0.92 Hz |
| Working Width | 2200 mm (86.61”) |
| Packaging Size (L x W x H) | 89” x 31” x 25” |
| Packaging Weight | 596 lbs |
