Description

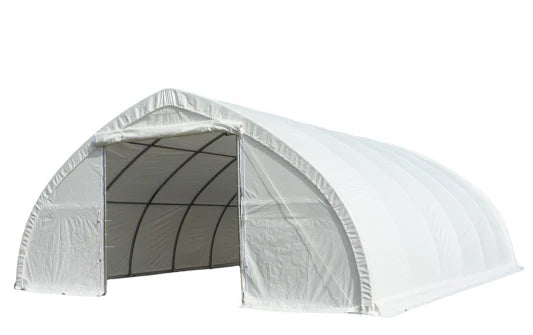

xThe Gold Mountain Single Truss Arch Wall Peak Storage Shelter W30’xL65’xH15’ is a uniquely designed storage solution that combines the strength of an arch wall with the practicality of a peaked roof. This hybrid structure offers superior durability, maximized interior space, and enhanced snow and water runoff capabilities, making it ideal for long-term storage of trucks, automobiles, equipment, and bulk materials.
This model features a reinforced arch wall base for stability while incorporating a peaked roof for efficient drainage. The result is a stronger, more spacious shelter that stands up to harsh weather conditions.
Installation & Maintenance
- Proper fabric tensioning is essential to prevent water pooling and should be checked after a few months, especially with seasonal temperature changes.
- Cold Weather Consideration: If assembled in autumn or winter, expect the fabric to loosen in warmer weather. Re-tightening is recommended before the next winter.
- Snow Removal: Owners must clear accumulated snow promptly if it does not slide off naturally.
Specifications
x| Floor Footprint | 181 m² / 1950 ft² |
|---|---|
| Frame Material | Galvanized Steel |
| Cover Material | 500g PVC |
| Main Arch Space | 2m / 6.56' |
| Main Arch Tube Thickness | 2mm / 0.08'' |
| Main Arch Tube Diameter | 42mm / 1.65'' |
| Purlin Tube Thickness | 1.5mm / 0.06'' |
| Purlin Tube Diameter | 40mm / 1.57'' |
| Door Size | 3.5m*3.5m / 11.4'*11.4' |
Shipping
x| Type | Package Dimensions | Package Weight |
|---|---|---|
| 500g PVC | 116.14 in * 29.53 in * 38.58 in / 295 cm * 75 cm * 98 cm | 2607lbs / 1182.51kg |
